一、跨域
NuGet參考Microsoft.AspNet.WebApi.Cors
WebApiConfig.cs中配置：
// Web API 配置和服務
config.EnableCors(new EnableCorsAttribute("*", "*", "*"));
二、清除默認回傳XML格式
Global.asax中配置：
GlobalConfiguration.Configuration.Formatters.XmlFormatter.SupportedMediaTypes.Clear();
三、Oracle配置
NuGet參考Oracle.ManagedDataAccess
1、根據插件生成App.config中的配置添加到Web.config中
2、參考Oracle.ManagedDataAccess.Client
四、log4net
1、NuGet參考log4net
2、AssemblyInfo.cs中配置：
[assembly: log4net.Config.XmlConfigurator(ConfigFile = "Log4Net.config", Watch = true)]
3、新建Log4Net.config組態檔
屬性-復制到輸出目錄改為如果較新則復制
Log4Net.config中配置：
<!-- Level的級別，由高到低 -->
<!-- None > Fatal > ERROR > WARN > DEBUG > INFO > ALL-->
<log4net>
<!--資訊日志類-->
<logger name="loginfo">
<level value="INFO" />
<appender-ref ref="InfoAppender" />
</logger>
<!--錯誤日志類-->
<logger name="logerror">
<level value="ERROR" />
<appender-ref ref="ErrorAppender" />
</logger>
<!--資訊日志附加介質-->
<!-- name屬性指定其名稱,type則是log4net.Appender命名空間的一個類的名稱-->
<appender name="InfoAppender" type="log4net.Appender.RollingFileAppender">
<!--日志輸出到exe程式這個相對目錄下-->
<param name="File" value="Log4Net\\LogInfo\\" />
<!--輸出的日志不會覆寫以前的資訊-->
<param name="AppendToFile" value="true" />
<!--日志檔案的最大大小-->
<param name="MaximumFileSize" value="2MB" />
<!--備份檔案的個數-->
<param name="MaxSizeRollBackups" value="10" />
<!--是否使用靜態檔案名-->
<param name="StaticLogFileName" value="false" />
<!--日志檔案名-->
<param name="DatePattern" value="yyyyMMdd".txt"" />
<!--檔案創建的方式-->
<param name="RollingStyle" value="Composite" />
<!--過濾器-->
<lockingMode type="Asia.Mobile.ApiService.Filter.MinimalLockDeleteEmpty"></lockingMode>
<!--資訊日志布局-->
<layout type="log4net.Layout.PatternLayout">
<param name="ConversionPattern" value="日志時間：%d [%t] <BR>%n日志級別：%-5p <BR>%n日 志 類：%c [%x] <BR>%n%m <BR>%n
" />
</layout>
</appender>
<appender name="ErrorAppender" type="log4net.Appender.RollingFileAppender">
<param name="File" value="Log4Net\\LogError\\" />
<param name="AppendToFile" value="true" />
<param name="MaxSizeRollBackups" value="100" />
<param name="MaxFileSize" value="10240" />
<param name="StaticLogFileName" value="false" />
<param name="DatePattern" value="yyyyMMdd".txt"" />
<param name="RollingStyle" value="Date" />
<lockingMode type="Asia.Mobile.ApiService.Filter.MinimalLockDeleteEmpty"></lockingMode>
<!--錯誤日志布局-->
<layout type="log4net.Layout.PatternLayout">
<param name="ConversionPattern" value="<HR COLOR=red>%n例外時間：%d [%t] <BR>%n例外級別：%-5p
 <BR>%n異 常 類：%c [%x] <BR>%n%m <BR>%n <HR Size=1>" />
</layout>
</appender>
</log4net>
View Code
4、新增Log4NetHelper.cs幫助類
public class Log4NetHelper
{
public static readonly log4net.ILog loginfo = log4net.LogManager.GetLogger("loginfo");
public static readonly log4net.ILog logerror = log4net.LogManager.GetLogger("logerror");
public static void WriteLog(string info)
{
if (loginfo.IsInfoEnabled)
{
loginfo.Info(info);
}
}
public static void WriteLog(string info, Exception ex)
{
if (logerror.IsErrorEnabled)
{
logerror.Error(info, ex);
}
}
}
View Code
5、新建logFilter.cs過濾器
在控制器上添加：[ApiLogFilterAttribute]
五、swagger
1、NuGet參考Swashbuckle
2、新增實作了ISwaggerProvider的介面類：
在App_Start檔案夾中添加SwaggerControllerDescProvider.cs
/// <summary>
/// 顯示swagger控制器的描述
/// </summary>
public class SwaggerControllerDescProvider : ISwaggerProvider
{
private readonly ISwaggerProvider _swaggerProvider;
private static ConcurrentDictionary<string, SwaggerDocument> _cache = new ConcurrentDictionary<string, SwaggerDocument>();
private readonly string _xml;
/// <summary>
///
/// </summary>
/// <param name="swaggerProvider"></param>
/// <param name="xml">xml檔案路徑</param>
public SwaggerControllerDescProvider(ISwaggerProvider swaggerProvider, string xml)
{
_swaggerProvider = swaggerProvider;
_xml = xml;
}
public SwaggerDocument GetSwagger(string rootUrl, string apiVersion)
{
var cacheKey = string.Format("{0}_{1}", rootUrl, apiVersion);
SwaggerDocument srcDoc = null;
//只讀取一次
if (!_cache.TryGetValue(cacheKey, out srcDoc))
{
srcDoc = _swaggerProvider.GetSwagger(rootUrl, apiVersion);
srcDoc.vendorExtensions = new Dictionary<string, object> { { "ControllerDesc", GetControllerDesc() } };
_cache.TryAdd(cacheKey, srcDoc);
}
return srcDoc;
}
/// <summary>
/// 從API檔案中讀取控制器描述
/// </summary>
/// <returns>所有控制器描述</returns>
public ConcurrentDictionary<string, string> GetControllerDesc()
{
string xmlpath = _xml;
ConcurrentDictionary<string, string> controllerDescDict = new ConcurrentDictionary<string, string>();
if (File.Exists(xmlpath))
{
XmlDocument xmldoc = new XmlDocument();
xmldoc.Load(xmlpath);
string type = string.Empty, path = string.Empty, controllerName = string.Empty;
string[] arrPath;
int length = -1, cCount = "Controller".Length;
XmlNode summaryNode = null;
foreach (XmlNode node in xmldoc.SelectNodes("//member"))
{
type = node.Attributes["name"].Value;
if (type.StartsWith("T:"))
{
//控制器
arrPath = type.Split('.');
length = arrPath.Length;
controllerName = arrPath[length - 1];
if (controllerName.EndsWith("Controller"))
{
//獲取控制器注釋
summaryNode = node.SelectSingleNode("summary");
string key = controllerName.Remove(controllerName.Length - cCount, cCount);
if (summaryNode != null && !string.IsNullOrEmpty(summaryNode.InnerText) && !controllerDescDict.ContainsKey(key))
{
controllerDescDict.TryAdd(key, summaryNode.InnerText.Trim());
}
}
}
}
}
return controllerDescDict;
}
}
View Code
3、新增SwaggerConfig.js，設定成嵌入式資源
功能：1、漢化 2、界面控制器的面熟
'use strict';
window.SwaggerTranslator = {
_words: [],
translate: function () {
var $this = this;
$('[data-sw-translate]').each(function () {
$(this).html($this._tryTranslate($(this).html()));
$(this).val($this._tryTranslate($(this).val()));
$(this).attr('title', $this._tryTranslate($(this).attr('title')));
});
},
setControllerSummary: function () {
$.ajax({
type: "get",
async: true,
url: $("#input_baseUrl").val(),
dataType: "json",
success: function (data) {
var summaryDict = data.ControllerDesc;
var id, controllerName, strSummary;
$("#resources_container .resource").each(function (i, item) {
id = $(item).attr("id");
if (id) {
controllerName = id.substring(9);
strSummary = summaryDict[controllerName];
if (strSummary) {
$(item).children(".heading").children(".options").first().prepend('<li title="' + strSummary + '">' + strSummary + '</li>');
}
}
});
}
});
},
_tryTranslate: function (word) {
return this._words[$.trim(word)] !== undefined ? this._words[$.trim(word)] : word;
},
learn: function (wordsMap) {
this._words = wordsMap;
}
};
/* jshint quotmark: double */
window.SwaggerTranslator.learn({
"Warning: Deprecated": "警告：已過時",
"Implementation Notes": "實作備注",
"Response Class": "回應類",
"Status": "狀態",
"Parameters": "引數",
"Parameter": "引數",
"Value": "值",
"Description": "描述",
"Parameter Type": "引數型別",
"Data Type": "資料型別",
"Response Messages": "回應訊息",
"HTTP Status Code": "HTTP狀態碼",
"Reason": "原因",
"Response Model": "回應模型",
"Request URL": "請求URL",
"Response Body": "回應體",
"Response Code": "回應碼",
"Response Headers": "回應頭",
"Hide Response": "隱藏回應",
"Headers": "頭",
"Try it out!": "試一下！",
"Show/Hide": "顯示/隱藏",
"List Operations": "顯示操作",
"Expand Operations": "展開操作",
"Raw": "原始",
"can't parse JSON. Raw result": "無法決議JSON. 原始結果",
"Model Schema": "模型架構",
"Model": "模型",
"apply": "應用",
"Username": "用戶名",
"Password": "密碼",
"Terms of service": "服務條款",
"Created by": "創建者",
"See more at": "查看更多：",
"Contact the developer": "聯系開發者",
"api version": "api版本",
"Response Content Type": "回應Content Type",
"fetching resource": "正在獲取資源",
"fetching resource list": "正在獲取資源串列",
"Explore": "瀏覽",
"Show Swagger Petstore Example Apis": "顯示 Swagger Petstore 示例 Apis",
"Can't read from server. It may not have the appropriate access-control-origin settings.": "無法從服務器讀取，可能沒有正確設定access-control-origin，",
"Please specify the protocol for": "請指定協議：",
"Can't read swagger JSON from": "無法讀取swagger JSON于",
"Finished Loading Resource Information. Rendering Swagger UI": "已加載資源資訊，正在渲染Swagger UI",
"Unable to read api": "無法讀取api",
"from path": "從路徑",
"server returned": "服務器回傳"
});
$(function () {
window.SwaggerTranslator.translate();
window.SwaggerTranslator.setControllerSummary();
});
View Code
4、配置SwaggerConfig.cs
public class SwaggerConfig
{
public static void Register()
{
var thisAssembly = typeof(SwaggerConfig).Assembly;
GlobalConfiguration.Configuration
.EnableSwagger(c =>
{
c.SingleApiVersion("v1", "Asia.Mobile.ApiService");
//添加下述代碼
var xmlFile = string.Format("{0}/bin/Asia.Mobile.ApiService.XML", System.AppDomain.CurrentDomain.BaseDirectory);
if (System.IO.File.Exists(xmlFile))
{
c.IncludeXmlComments(xmlFile);
}
c.ResolveConflictingActions(apiDescriptions => apiDescriptions.First());
c.CustomProvider((defaultProvider) => new SwaggerControllerDescProvider(defaultProvider, xmlFile));
})
.EnableSwaggerUi(c =>
{
c.InjectJavaScript(Assembly.GetExecutingAssembly(), "Asia.Mobile.ApiService.Scripts.SwaggerConfig.js");
});
}
}
View Code

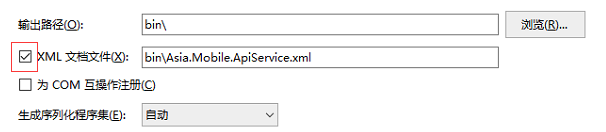

5、配置專案的XML檔案檔案
6、取消警告提示
6、分組
新增描述資訊過濾器：
[AttributeUsage(AttributeTargets.Class, AllowMultiple = false)]
public class ControllerGroupAttribute : Attribute
{
/// <summary>
/// 當前Controller所屬模塊 請用中文
/// </summary>
public string GroupName { get; private set; }
/// <summary>
/// 當前controller用途 請用中文
/// </summary>
public string Useage { get; private set; }
/// <summary>
/// Controller描述資訊 構造
/// </summary>
/// <param name="groupName">模塊名稱</param>
/// <param name="useage">當前controller用途</param>
public ControllerGroupAttribute(string groupName, string useage)
{
if (string.IsNullOrEmpty(groupName) || string.IsNullOrEmpty(useage))
{
throw new ArgumentNullException("groupName||useage");
}
GroupName = groupName;
Useage = useage;
}
}
View Code
給Controller加上這個Attribute，再給SwaggerConfig.cs進行分組操作：
c.GroupActionsBy(apiDesc => apiDesc.GetControllerAndActionAttributes<ControllerGroupAttribute>().Any() ?
apiDesc.GetControllerAndActionAttributes<ControllerGroupAttribute>().First().GroupName + "_" +
apiDesc.GetControllerAndActionAttributes<ControllerGroupAttribute>().First().Useage : "無模塊歸類");
View Code
